Product Description:
The Tungsten Carbide Rod is available in different grades,
including CF12, CF25, CF812, CF312, CF608, and CF406. These grades
have different properties, making them suitable for various
applications. The CF12 and CF25 grades are ideal for
general-purpose applications, while the CF812 and CF312 grades are
suitable for high-temperature applications. The CF608 and CF406
grades are perfect for high-stress applications.

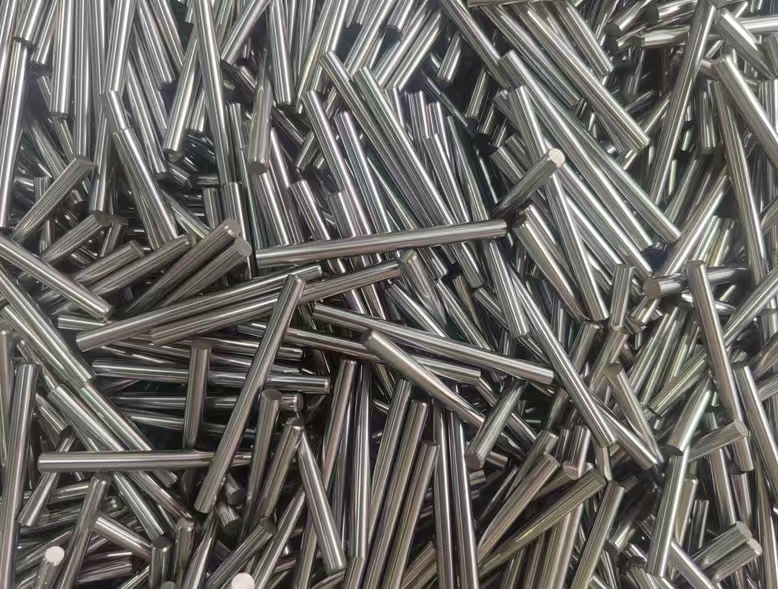

The Tungsten Carbide Rod has a fine grain structure, which makes it
highly resistant to wear and tear. This feature ensures that the
rod can withstand harsh working conditions without getting damaged.
The rod is also designed with one end chamfered and the other flat,
which makes it easy to install and use. The chamfered end allows
for easy insertion into the workpiece, while the flat end provides
a stable base for the workpiece.
The Tungsten Carbide Rod undergoes a fine grinding process to
ensure that it has a smooth surface finish. This feature ensures
that the rod can be used in high-precision applications without
causing any damage to the workpiece. The fine grinding also ensures
that the rod has a high level of precision, which is essential in
many industrial applications.
Our Tungsten Carbide Rod product comes with an OEM service, which
allows our customers to order customized rods that meet their
specific needs. We ensure that our customers get high-quality
products that meet their requirements, and that is why we accept
OEM orders. We also provide excellent customer service to ensure
that our customers are satisfied with our products and services.
Features:
- Product Name: Tungsten Carbide Rod
- Grade: CF12 CF25 CF812 CF312 CF608 CF406
- Colour: Metallic Silver
- OEM Service: Acceptable
- Custom: OEM/ ODM
- Keyword: Carbide Round Rod
- Customizable with arbitrary cutting
- Various models
- Long Tool Life
Technical Parameters:
| number | WC
±0.5% | CO
±0.5% |
um |
Densityg/cm3 |
HRA |
TRSN/mm2 | Application |
|
| XA80 | 80 | 20 | 3-6 | 15.58 | 84.00 | 3000 | Screw Die Nut Die Six-Piece Die |
| XA90 | 78 | 22 | 6-9 | 13.39 | 82.50 | 2800 | Nut Die |
| XA95 | 75 | 25 | 6-9 | 13.12 | 81.50 | 2800 | Impact-Resistant Forging Die Nut Die |
| XA65 | 82 | 18 | 2-6 | 13.73 | 85.50 | 3000 | Fully Tungsten Single Hit |
| XC90 | 75 | 25 | 2-6 | 13.00 | 83.00 | 2800 | Nut Die |
| XT60 | 80 | 20 | 3-6 | 13.40 | 86.00 | 3200 | High Stress |
| XC75 | 75 | 25 | 2-6 | 13.00 | 83.80 | 3000 | Impact-Resistant |
| XT6 | 85 | 15 | 3-6 | 13.80 | 86.20 | 3200 | Stainless Steel Screw Die Stretching
Reducing Rod |
| XT7 | 80 | 20 | 3-6 | 13.38 | 84.80 | 2900 | Stainless Steel Shaping |
| XT8 | 78 | 22 | 3-6 | 13.20 | 84.00 | 2900 | Stainless Steel Screw Die |
| XT10 | 77 | 23 | 3-6 | 13.20 | 83.50 | 2900 | Nut Cap Nut |
Applications:
Introduction to the Process of Tungsten Steel Round Bars,
Tungsten-Cobalt Alloy Solid Bars, and Tungsten Carbide Round Bars:
Introduction to the Process of Tungsten Steel Round Bars,
Tungsten-Cobalt Alloy Solid Bars, and Tungsten Carbide Round Bars:
1.Automatic Pressure Relief Extrusion Equipment: Various types of bars can be produced using this equipment.
2.Low-Pressure Sintering Technology: The tungsten steel round bars utilize low-pressure sintering
technology, ensuring stable and reliable quality. The maximum
sintering pressure can reach 100 kilograms of force, effectively
reducing internal porosity in the alloy, resulting in a dense,
high-hardness, and high-strength blank. An advanced temperature
control system effectively minimizes quality fluctuations.
3.Precision Grinding for Mirror Finish: The bars undergo precision grinding using CNC grinding machines,
which can quickly remove the damaged layer created during
polishing, improving surface smoothness and achieving a mirror
finish. The precision of the ground bars is as follows: Diameter
tolerance D ≤ ±0.003 mm; Length tolerance L ≤ ±0.5 mm.
Customization:
Customizable
Support and Services:
Tungsten Carbide Rod is a high-performance material used in various
industrial applications. It is known for its exceptional hardness,
wear resistance, and strength.
Our Technical Support team is available to assist you with any
questions or concerns you may have regarding the Tungsten Carbide
Rod product. They can provide guidance on product selection,
installation, and maintenance to ensure optimal performance and
longevity.
We also offer a range of Services to support your Tungsten Carbide
Rod needs, including custom fabrication, precision grinding, and
coating application. Our experienced team can work with you to
develop customized solutions that meet your specific requirements
and applications.
