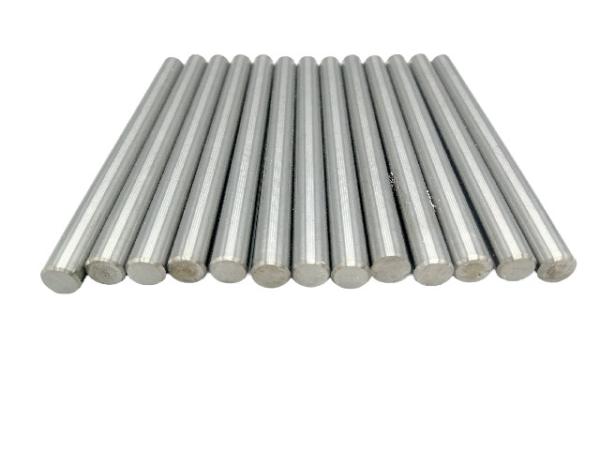

Carbide Rod Made Of High-Quality Tungsten Powder And Appropriate
Amount Of Cobalt
Product Description:
If you are looking for a product that is reliable, durable, and can
withstand high heat, then the Cemented Carbide Rod is the product
for you. Its high thermal conductivity, high hardness, and high
wear resistance make it an ideal choice for various applications.
So, whether you are looking for a product for cutting tools, dies,
molds, or any other application, the Cemented Carbide Rod is the
product you can trust.
Features:
- Product Name: Cemented Carbide Rod
- Tungsten carbide raw material
- Blank rods
- High hardness:
- Thermal Conductivity: 80-120 W/m·K
- Compressive Strength: 5000-8000 MPa
- Standard: ISO/GB/ANSI/DIN/JIS
Technical Parameters:
HV
DPH | hardness10MM/load3000KG | Rockwell superficial hardness3R | Rockwell hardness3R |
| 1350 | - | - | - | - | - | - | 89.5 | | 75.0 | - |
| 1300 | - | - | - | - | - | - | 89.0 | | 74.0 | - |
| 1250 | - | - | - | - | - | - | 88.5 | | 73.0 | - |
| 1200 | - | - | - | - | - | - | 88.0 | | 72.0 | - |
| 1150 | - | - | - | - | - | - | 87.5 | | 71.5 | - |
| 1140 | - | - | - | - | - | - | 87.0 | | 71.0 | - |
| 1076 | - | - | - | - | - | - | 86.5 | | 70.0 | - |
| 1004 | - | - | - | - | - | - | 86.0 | | 69.0 | - |
| 940 | - | - | - | 93.2 | 84.4 | 75.5 | 85.5 | | 68.0 | 76.9 |
| 920 | - | - | - | 93.0 | 84.0 | 74.8 | 85.3 | | 67.5 | 76.5 |
| 900 | - | - | - | 92.9 | 83.6 | 74.2 | 85.0 | | 67.0 | 76.1 |
| 880 | - | - | - | 92.7 | 83.1 | 73.6 | 84.7 | | 66.4 | 75.7 |
| 860 | - | - | 757 | 92.5 | 82.7 | 73.1 | 84.4 | | 65.9 | 75.3 |
| 840 | - | - | 745 | 92.3 | 82.2 | 72.2 | 84.1 | | 65.3 | 74.8 |
| 820 | - | - | 733 | 92.1 | 81.7 | 71.8 | 83.8 | | 64.7 | 74.3 |
| 800 | - | - | | 91.8 | 81.1 | 71.0 | 83.4 | | 64.0 | 73.8 |
| 1700 | - | - | - | - | - | - | 92.5 | | 80.5 | - |
| 1600 | - | - | - | - | - | - | 92.0 | | 80.0 | - |
| 1550 | - | - | - | - | - | - | 91.5 | | 79.0 | - |
| 1500 | - | - | - | - | - | - | 91.0 | | 78.0 | - |
| 1450 | - | - | - | - | - | - | 90.5 | | 77.0 | - |
| 1400 | - | - | - | - | - | - | 90.0 | | 76.0 | - |
| 780 | - | - | 710 | 91.5 | 80.4 | 70.2 | 93.0 | | 63.3 | 73.3 |
| 760 | - | - | 698 | 91.2 | 79.7 | 69.4 | 82.6 | | 62.5 | 72.6 |
| 740 | - | - | 684 | 91.0 | 79.1 | 68.6 | 82.2 | | 61.8 | 72.1 |
| 720 | - | - | | 90.7 | 78.4 | 67.7 | 81.8 | | 61.0 | 71.5 |
| 700 | - | 615 | 656 | 90.3 | 77.6 | 66.7 | 81.3 | | 59.7 | 79.8 |
| 690 | - | 610 | 647 | 90.1 | 77.2 | 66.2 | 81.1 | | 59.2 | 70.5 |
| 680 | - | 603 | 638 | 89.8 | 76.8 | 65.7 | 80.8 | | 58.8 | 70.1 |
| 670 | - | 597 | | 89.7 | 76.4 | 65.3 | 80.6 | | 58.3 | 69.8 |
| 660 | - | 590 | 620 | 89.5 | 75.9 | 64.7 | 80.3 | | 57.8 | 69.4 |
| 650 | - | 585 | 611 | 89.2 | 75.5 | 64.1 | 80.0 | | 57.3 | 69.0 |
| 640 | - | 578 | 601 | 89.0 | 75.1 | 63.5 | 79.8 | | 5556.8 | 68.7 |
| 630 | - | 571 | 591 | 88.8 | 74.6 | 63.0 | 79.5 | | | 68.3 |

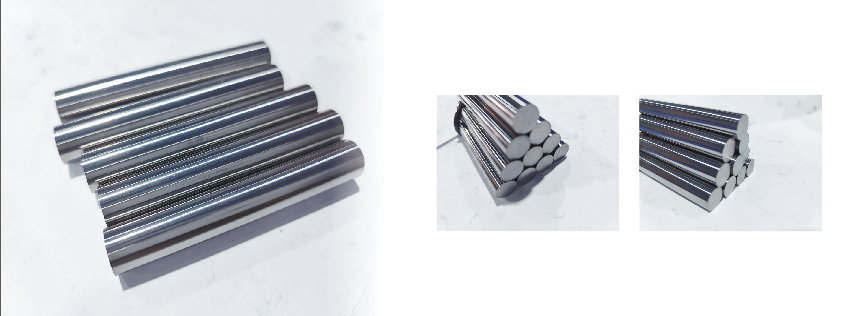

Unground and unpolished, Extrusion molding, Tungsten carbide rods
Applications:
With a length of up to 330 mm and a diameter range of 2-50mm,
Xincheng cemented carbide rods are suitable for a variety of
applications. These rods are commonly used in machining and cutting
tools, such as drills, end mills, and reamers, as well as in
production equipment for the construction, mining, and oil
industries.
Xincheng cemented carbide rods are known for their excellent
thermal conductivity, with a range of 80-120 W/m·K. This makes them
particularly useful in high-temperature environments, where other
materials may fail. In addition, these rods are manufactured
according to ISO/GB/ANSI/DIN/JIS standards, ensuring that they are
of the highest quality and meet industry standards.
Xincheng cemented carbide rods are produced in Xiamen, where they
benefit from the region's skilled workforce and advanced
manufacturing facilities. With a supply ability of 50 tons per
month, Xincheng can meet the needs of a wide range of customers,
from small businesses to large corporations.
In summary, Xincheng cemented carbide rods are a reliable and
durable choice for wear parts in a variety of industrial and
manufacturing applications. With their high-quality tungsten
carbide composition, excellent thermal conductivity, and range of
sizes, these rods are suitable for cutting, machining, and
production equipment, among other uses. Their length of up to 330
mm makes them ideal for larger-scale projects, while their Hrv
value of 91.2 ensures that they are of the highest quality.
Customization:Can be customized or developed according to customer
use
Support and Services:
The Cemented Carbide Rod product technical support and services
include:
- Expert consultation on product selection and application
- Customized product development and design
- Technical training and support for machining and tool usage
- Material testing and analysis
- Troubleshooting and problem-solving assistance
- Product repair and reconditioning services
- Supply chain management and logistics support
