Product Description:

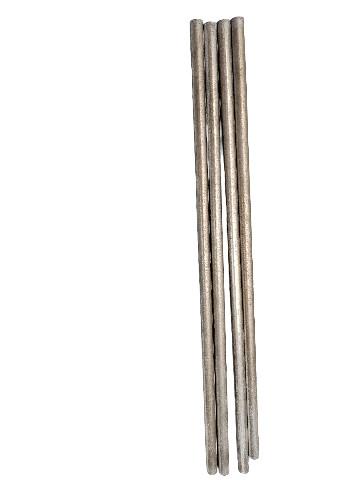

Our Cemented Carbide Rod is available in a range of standard sizes,
including lengths of 50-330mm, ensuring that you can find the
perfect fit for your needs. Additionally, it meets international
standards including ISO, GB, ANSI, DIN, and JIS, ensuring that you
can use it with confidence and know that it will deliver consistent
performance every time.
Whether you're working in construction, manufacturing, or any other
industry that requires high-quality tools, the Cemented Carbide Rod
is an excellent choice. With its exceptional durability and
performance, it is sure to become an indispensable part of your
toolkit, helping you to work more efficiently and effectively than
ever before.
Features:
- Product Name: Cemented Carbide Rod
- Density: 14.5-15.9 G/cm3
- Dimension: Customized
- Flexural Strength: 3500-6000 MPa
- Standard: ISO/GB/ANSI/DIN/JIS
- Hra: 92.4
- Tungsten carbide raw material
- Corrosion resistance
| number | WC
±0.5% | CO
±0.5% |
um |
Densityg/cm3 |
HRA |
TRSN/mm2 | Application |
|
| XA80 | 80 | 20 | 3-6 | 15.58 | 84.00 | 3000 | Screw Die Nut Die Six-Piece Die |
| XA90 | 78 | 22 | 6-9 | 13.39 | 82.50 | 2800 | Nut Die |
| XA95 | 75 | 25 | 6-9 | 13.12 | 81.50 | 2800 | Impact-Resistant Forging Die Nut Die |
| XA65 | 82 | 18 | 2-6 | 13.73 | 85.50 | 3000 | Fully Tungsten Single Hit |
| XC90 | 75 | 25 | 2-6 | 13.00 | 83.00 | 2800 | Nut Die |
| XT60 | 80 | 20 | 3-6 | 13.40 | 86.00 | 3200 | High Stress |
| XC75 | 75 | 25 | 2-6 | 13.00 | 83.80 | 3000 | Impact-Resistant |
| XT6 | 85 | 15 | 3-6 | 13.80 | 86.20 | 3200 | Stainless Steel Screw Die Stretching
Reducing Rod |
| XT7 | 80 | 20 | 3-6 | 13.38 | 84.80 | 2900 | Stainless Steel Shaping |
| XT8 | 78 | 22 | 3-6 | 13.20 | 84.00 | 2900 | Stainless Steel Screw Die |
| XT10 | 77 | 23 | 3-6 | 13.20 | 83.50 | 2900 | Nut Cap Nut |
Applications:
The cemented carbide rod is a blank rod made from tungsten carbide
raw material. thermal conductivity of 80-120 W/m·K, and fracture
toughness of 7-10 MPa·m1/2. These properties make it ideal for use
in various applications that require impact-resistant tools.
The cemented carbide rod product has several application occasions
and scenarios such as:
- Metalworking: The cemented carbide rod is used to make cutting
tools, drills, milling cutters, and other metalworking tools. Its
high wear resistance and high hardness make it suitable for cutting
and shaping hard materials such as steel, cast iron, and
non-ferrous materials.
- Woodworking: The cemented carbide rod is used to make woodworking
tools such as saw blades, router bits, and planer knives. Its high
wear resistance and high hardness make it ideal for cutting and
shaping wood and other materials used in woodworking.
- Mining and Construction: The cemented carbide rod is used to make
drilling and excavation tools such as drill bits, chisels, and
hammers. Its high strength and impact resistance make it suitable
for use in demanding environments such as mining and construction.
- Oil and Gas Industry: The cemented carbide rod is used to make
drilling and exploration tools used in the oil and gas industry.
Its high wear resistance and high hardness make it suitable for
drilling through hard rock formations.
In conclusion, the cemented carbide rod product from xincheng is a
high-quality product that is suitable for use in various industries
and applications. Its high wear resistance, high hardness, high
strength, and corrosion resistance make it an ideal choice for
impact-resistant tools. With customized dimensions and a supply
ability of 50 tons per month, xincheng ensures that customers get
their desired products on time.
Customization:Customizable
Support and Services:High-quality products and attentive,
professional service
