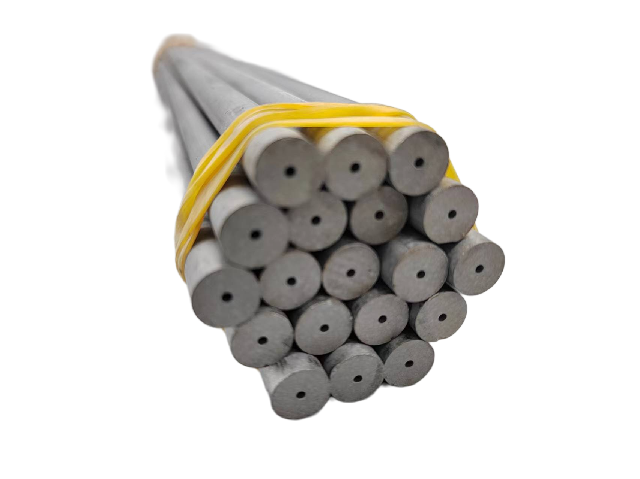

Product Description:
Our tungsten carbide rods with cooling holes are specifically
designed for high-speed machining applications, offering superior
performance and versatility. These rods are ideal for the
production of milling cutters and drill bits, ensuring efficient
heat management and exceptional durability.
Key Features:
- High-Quality Tungsten Carbide: Crafted from premium tungsten carbide, these rods provide
outstanding hardness, wear resistance, and strength, making them
suitable for demanding machining environments.
- Cooling Hole Design: The integrated cooling holes facilitate effective heat dissipation
during high-speed operations, minimizing the risk of thermal damage
and enhancing tool longevity.
- Versatile Applications: Perfect for manufacturing a variety of cutting tools, including
milling cutters and drill bits, these rods meet the diverse needs
of various industries, such as aerospace, automotive, and
metalworking.
- Precision Manufacturing: Each rod is engineered to exact specifications, ensuring
consistent performance and accuracy in every machining operation,
resulting in high-quality end products.
- Enhanced Performance: The combination of high-quality materials and cooling design
allows for optimal performance, improving machining efficiency and
reducing cycle times.
Choose our tungsten carbide rods with cooling holes for high-speed
machining to enhance the efficiency and effectiveness of your
milling and drilling operations.
Features:
- Product Name: Carbide Rod With Coolant Hole
- Coolant Hole Type: Straight
- Surface Finish: Ground
- Coolant Hole Size: 2mm
- Coolant Type: Water-based
- Material: Carbide
- Features:
- High Wear Resistance for longer tool life
- Straight Coolant Hole for efficient cooling
- Ground Surface Finish for improved precision
- 2mm Coolant Hole Size for optimal coolant flow
- Water-based Coolant Type for environmentally friendly operation
- Carbide Material for increased durability and toughness
- Improves Machining Efficiency for faster and more accurate results
Technical Parameters:
| Attribute | Value |
|---|
| Suitable For | High-speed Machining |
| Coolant Type | Water-based |
| Surface Finish | Ground |
| Coolant Hole Type | Straight |
| Coolant Hole Position | Center |
| Material | Carbide |
| Coolant Hole Size | 2mm |
This Carbide Rod With Coolant Hole is a durable tooling that
delivers custom cutting tools. Its water-based coolant system and
straight coolant hole type enable high-speed machining with a
smooth and precise surface finish.
| Single cooling hole in a billet rod |
| Type | Dimension | Grade |
| D /mm | mm | d/mm | mm | Hole Center Offset High | TF20 | TF25 |
| GA1030330 | 3.0 | +0.3—0.5 | 0.5 | ±0.10 | 0.1 | ◎ | ○ |
| GA1040330 | 4.0 | +0.3—0.5 | 0.8 | ±0.10 | 0.1 | ◎ | ○ |
| GA1050330 | 5.0 | +0.3—0.5 | 0.8 | ±0.10 | 0.13 | ◎ | ○ |
| GA1060330 | 6.0 | +0.30~+0.50 | 1 | ±0.15 | 0.15 | ◎ | ○ |
| GA1070330 | 7.0 | +0.3-0.6 | 1 | ±0.15 | 0.15 | ◎ | ○ |
| GA1080330 | 8.0 | +0.3-0.6 | 1 | ±0.15 | 0.15 | ◎ | ○ |
| GA1090330 | 9.0 | +0.3-0.6 | 1.4 | ±0.15 | 0.2 | ◎ | ○ |
| GA1100330 | 10.0 | +0.3-0.6 | 1.4 | ±0.15 | 0.2 | ◎ | ○ |
| GA1110330 | 11.0 | +0.3-0.6 | 1.4 | ±0.15 | 0.28 | ◎ | ○ |
| GA1120330 | 12.0 | +0.3-0.6 | 1.75 | ±0.15 | 0.3 | ◎ | ○ |
| GA1130330 | 13.0 | +0.30~+0.70 | 1.75 | ±0.15 | 0.34 | ◎ | ○ |
| GA1140330 | 14.0 | +0.30~+0.70 | 1.75 | ±0.15 | 0.37 | ◎ | ○ |
| GA1150330 | 15.0 | +0.3—0.7 | 1.75 | ±0.20 | 0.4 | ◎ | ○ |
| GA1160330 | 16.0 | +0.3—0.7 | 2 | ±0.20 | 0.4 | ◎ | ○ |
| GA1170330 | 17.0 | +0.3-0.8 | 2 | ±0.20 | 0.47 | ◎ | ○ |
| GA1180330 | 18.0 | +0.3-0.8 | 2 | ±0.20 | 0.5 | ◎ | ○ |
| GA1190330 | 19.0 | +0.3-+0.8 | 2 | ±0.20 | 0.5 | ◎ | ○ |
| GA1200330 | 20.0 | +0.3-0.8 | 2.5 | ±0.25 | 0.5 | ◎ | ○ |
| GA1210330 | 21.0 | +0.3-0.8 | 2.5 | ±0.25 | 0.5 | ◎ | ○ |
| GA1220330 | 22.0 | +0.3-0.8 | 2.5 | ±0.25 | 0.5 | ◎ | ○ |
| GA1230330 | 23.0 | +0.3-0.8 | 2.5 | ±0.25 | 0.5 | ◎ | ○ |
| GA1240330 | 24.0 | +0.3-0.8 | 3 | ±0.25 | 0.5 | ◎ | ○ |
| GA1250330 | 25.0 | +0.3-0.8 | 3 | ±0.25 | 0.5 | ◎ | ○ |
| GA1260330 | 26.0 | +0.3-0.8 | 3 | ±0.25 | 0.5 | ◎ | ○ |
| GA1270330 | 27.0 | +0.3-0.8 | 3 | ±0.25 | 0.5 | ◎ | ○ |
| GA1280330 | 28.0 | +0.3-0.8 | 3 | ±0.25 | 0.5 | ◎ | ○ |
| GA1290330 | 29.0 | +0.3-0.8 | 3 | ±0.25 | 0.5 | ◎ | ○ |
| GA1300330 | 30.0 | +0.3-0.8 | 3 | ±0.25 | 0.5 | ◎ | ○ |
Applications:
Our Carbide Rod With Coolant Hole products are made from
top-quality carbide material, ensuring durability and longevity.
These products are made in Fujian, a place known for producing
high-quality materials. With a minimum order quantity of just 1kg,
you can get your hands on these amazing products without any
hassle.
Our Carbide Rod With Coolant Hole products are perfect for
applications where cooling is required. The straight coolant holes
make it easy for coolant to reach the cutting edge, reducing heat
buildup and increasing the life of the tool. These products are
perfect for drilling, milling, and other cutting operations where
high-precision and accuracy are required.
Our Carbide Rod With Coolant Hole products are also perfect for
water-based coolants. The center coolant hole position ensures that
the coolant reaches the cutting edge efficiently, providing
excellent cooling and lubrication. With a supply ability of 50 tons
per month, you can rest assured that we have got you covered for
all your cutting tool needs.
Support and Services:
The Carbide Rod With Coolant Hole product comes with technical
support and services to ensure proper use and maintenance. Our team
of experts is available to assist with any questions or concerns
you may have regarding the product's specifications, features, and
applications. In addition, we provide repair and maintenance
services to keep your carbide rod functioning at optimal levels.
Contact us for more information on our technical support and
services.
FAQ:Brand Name: xincheng
Model Number: CF12 CF25 CF812 CF312 CF608 CF406 CF506 CF412 CF09
XA80 XA90 XA95 XA65
Place of Origin: fujian
Minimum Order Quantity: 1kg
Supply Ability: 50 tons per month
