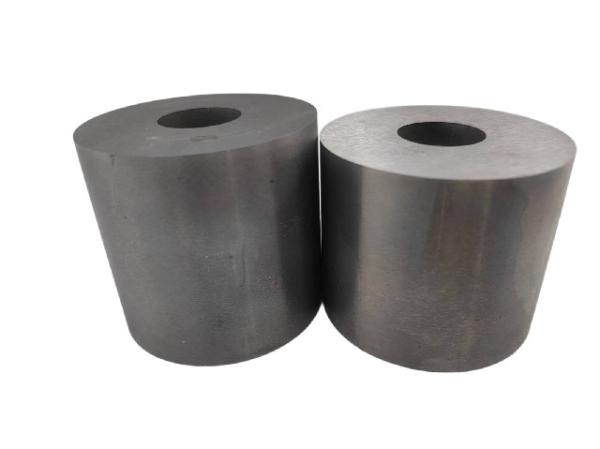

Product Description:
The Carbide Cold Heading Die is an essential component in the cold
heading process, which is used in the manufacturing of fasteners
and other metal components. The process involves the use of a punch
and die set to form the metal into the desired shape. The Carbide
Cold Heading Die is used to form the head of the screw or bolt,
which is an essential part of the fastener.
The Carbide Cold Heading Die is known for its long service life and
high-temperature and wear resistance. This is due to the
high-quality materials used in its construction. The die is made
from tungsten carbide die blanks, which are known for their
superior hardness and durability. This means that the Carbide Cold
Heading Die can withstand the high pressures and temperatures of
the cold heading process without becoming damaged or deformed.
The Carbide Cold Heading Die is an essential tool for any
manufacturer that specializes in the production of fasteners or
other metal components. Its high precision and durability make it a
cost-effective solution for cold heading operations. The die is
designed to be used with high-speed cold heading machines, which
ensures that the production process is fast and efficient.
Overall, the Carbide Cold Heading Die is a high-quality product
that is designed to meet the demands of the cold heading process.
Its superior durability and resistance to high temperatures and
wear make it an ideal tool for any manufacturer that requires
precision and reliability in their production processes.
Features:
- Product Name: Carbide Cold Heading Die
- Material: Carbide
- Customization: Available According To Customer's Requirements
- Resistance: High Temperature And Wear Resistance
- Usage: High Precision Cold Heading Process
- Size: Customized
- Applications:
- Wire Drawing Molds
- Screw Molds
- Stamping die
Technical Parameters:
| Parameter | Description |
|---|
| Size | Customized |
| Customization | Available According To Customer's Requirements |
| Material | Carbide |
| Durability | Long Service Life |
| Shape | Round |
| Resistance | High Temperature And Wear Resistance |
| Usage | High Precision Cold Heading Process |
| Application | Cold Heading Process |
| Compatibility | Suitable For Various Materials Such As Steel, Aluminum, Copper |
| Xincheng (Xiamen) Cemented Carbide Co., Ltd. |
| number | WC
±0.5% | CO
±0.5% |
um |
Densityg/cm3 |
HRA |
TRSN/mm2 | Main purpose or application |
|
| XG2 | 94 | 6 | 2-3 | 14.98 | 90.50 | 3000 | Stretching
Rod Mould |
| XG3 | 92 | 8 | 2-3 | 14.61 | 89.30 | 3200 |
| XG4 | 88 | 12 | 2-3 | 14.31 | 89.50 | 3450 |
| XG5 | 88 | 12 | 2-3 | 14.30 | 88.00 | 3500 | Wear-resistant and impact-resistant molds, etc. Examples include
shear punches, strong rod dies for screw fastening, etc |
| XG6 | 86 | 14 | 2-3 | 14.12 | 87.00 | 3500 |
| XG7 | 85 | 15 | 1 | 13.85 | 89.00 | 4100 | Wear-resistant and impact-resistant molds, etc. Examples include
shear punches, strong rod dies for screw fastening, etc |
| XA80 | 80 | 20 | 3-6 | 15.58 | 84.00 | 3000 | Screw Die Nut Die
Six-Piece Die |
| XA90 | 78 | 22 | 6-9 | 13.39 | 82.50 | 2800 | Nut Die |
| XA95 | 75 | 25 | 6-9 | 13.12 | 81.50 | 2800 | Impact-resistant forging dies, nut dies, etc. |
| XA65 | 82 | 18 | 2-6 | 13.73 | 85.50 | 3000 | Full Tungsten Punch |
| XC90 | 75 | 25 | 2-6 | 13.00 | 83.00 | 2800 | Cap Nut Die |
| XT60 | 80 | 20 | 3-6 | 13.40 | 86.00 | 3200 | high stress |
| XC75 | 75 | 25 | 2-6 | 13.00 | 83.80 | 3000 | impact-resistant |
| XT6 | 85 | 15 | 3-6 | 13.80 | 86.20 | 3200 | Stainless Steel Screw Die Stretching and Reducing Rod |
| XT7 | 80 | 20 | 3-6 | 13.38 | 84.80 | 2900 | Stainless Steel Shaping |
| XT8 | 78 | 22 | 3-6 | 13.20 | 84.00 | 2900 | Stainless Steel Screw Die Stretching and Reducing Rod |
| XT10 | 77 | 23 | 3-6 | 13.20 | 83.50 | 2900 | Nut and Cap Nut Die |
| FT60 | 86 | 14 | 3-9 | 13.97 | 84.80 | 2690 | For Hot Extrusion Molds, Hot Forging Dies |
| FT70 | 84 | 16 | 3-9 | 13.45 | 83.50 | 2700 |
| FT80 | 88 | 12 | 3-9 | 13.30 | 82.50 | 2500 |
Applications:
Xincheng's Carbide Cold Heading Die products are manufactured in
Fujian, China, and have a minimum order quantity of 1kg, with a
supply ability of 50 tons per month. The products are round in
shape, and their size can be customized to meet the customer's
requirements.
The Carbide Cold Heading Die products are designed for various
product application occasions and scenarios. They are suitable for
use in high-strength applications such as multi-station bolt
forming molds and screw molds.
These products are highly resistant to high temperatures and wear,
making them durable and ensuring they have a long service life.
Customers can rely on Xincheng's Carbide Cold Heading Die products
to meet their manufacturing needs efficiently and with high
precision.
Customization:
Customizable High-Quality Cemented Carbide Round Dies for Fastener
Screw Mold Processing
Support and Services:
Our Carbide Cold Heading Die product comes with comprehensive
technical support and services to ensure that your production
process runs smoothly and efficiently. Our team of experts is
available to assist you with any technical questions or issues that
may arise during the use of our product. We also offer
customization services to meet your specific needs and
requirements. In addition, we provide maintenance and repair
services to prolong the lifespan of your Carbide Cold Heading Die.
Our goal is to provide you with the highest quality products and
services to maximize your productivity and profitability.
Packing and Shipping:
Product: Carbide Cold Heading Die
Description: A durable and reliable die for cold heading
applications. Made of high-quality carbide material, it can
withstand high-pressure and high-temperature conditions.
Packaging: Each die is carefully packed in a hard plastic case to
ensure safe transportation and storage.
Shipping: We use trusted shipping carriers to deliver your order in
a timely and secure manner. Orders are processed within 2 business
days and typically arrive within 5-7 business days. Expedited
shipping options are also available.
